TPUH701T 3x1 Wallplate Transmitter

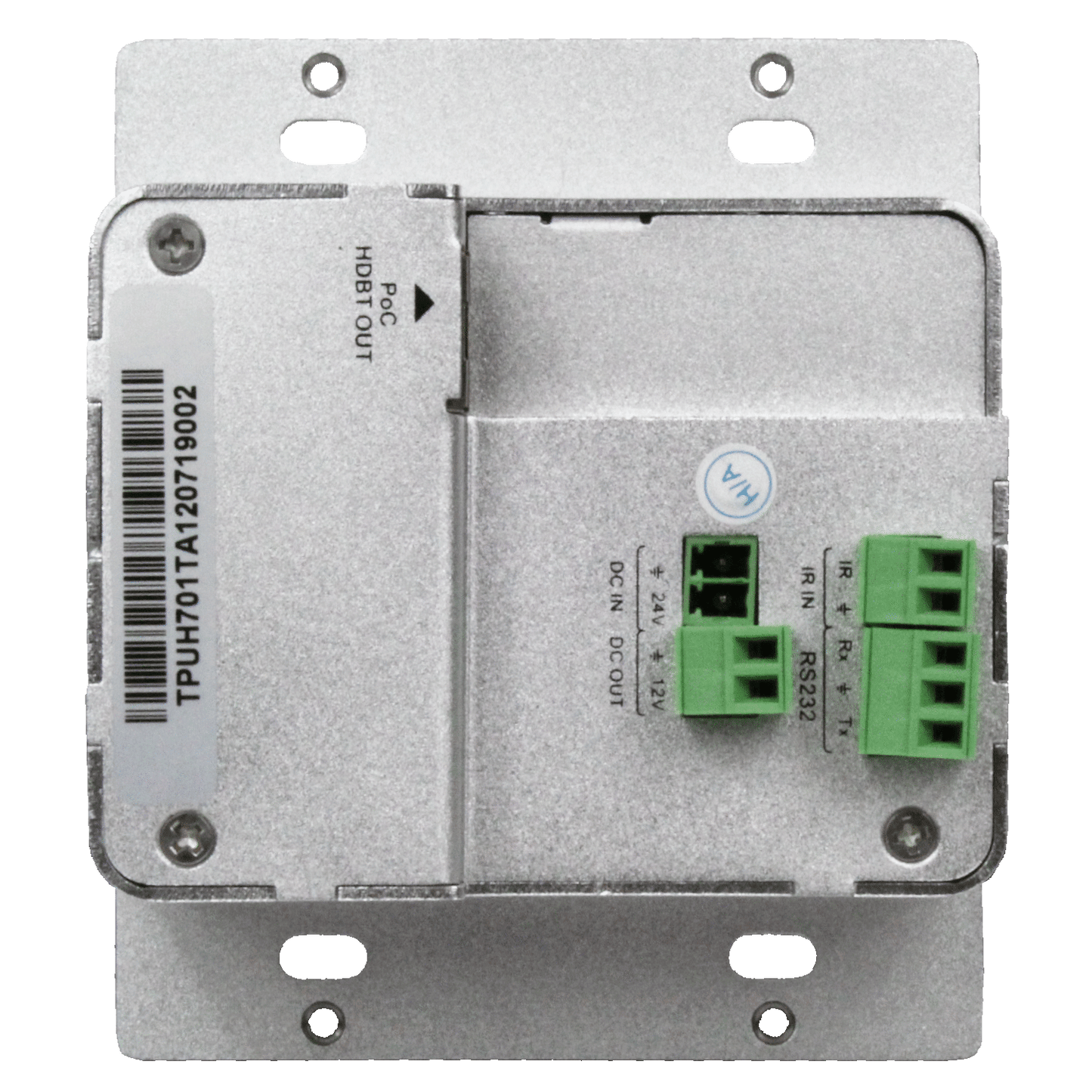

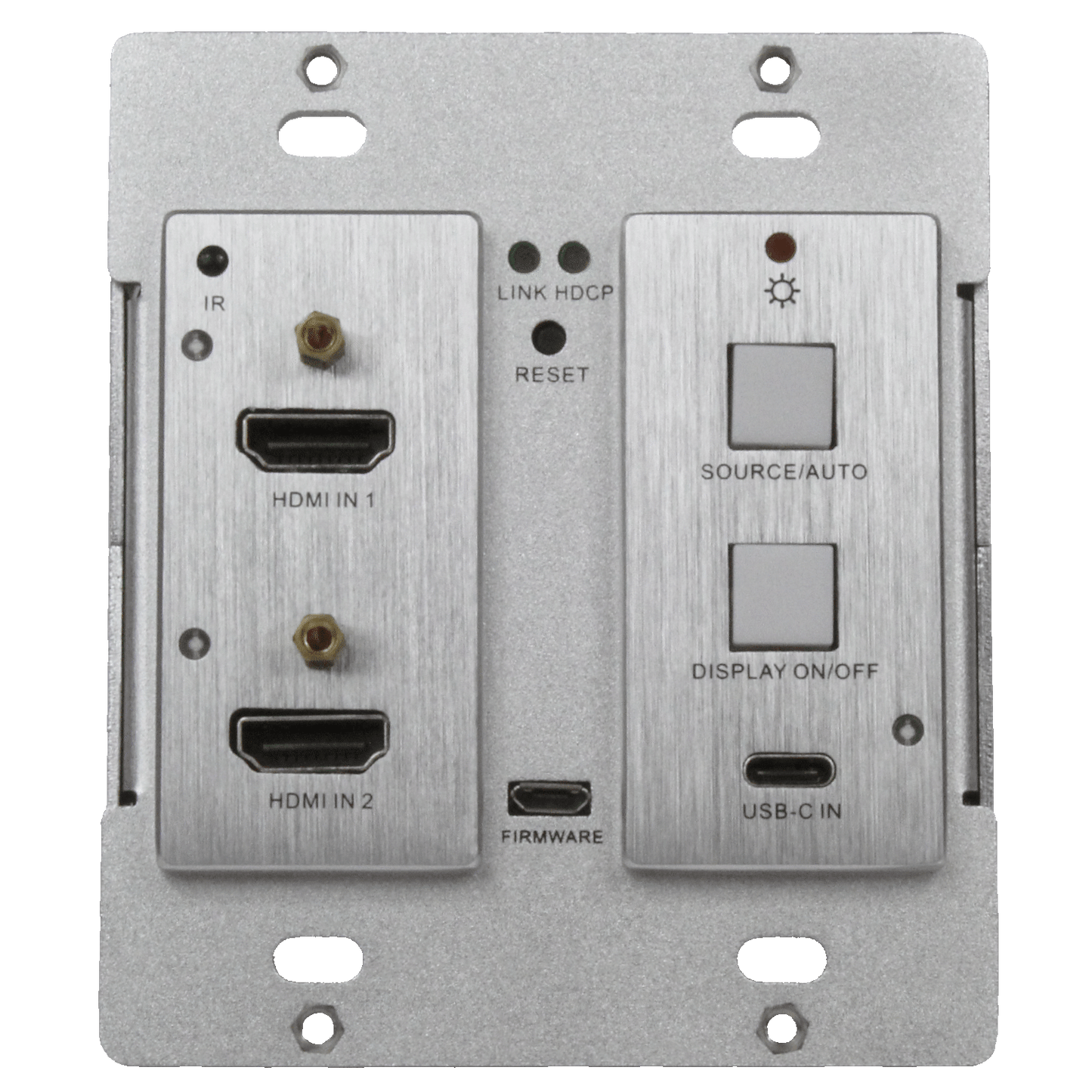

The TPUH701T is a 3x1 Wallplate Transmitter, designed to switch and extend video signals to a distant display. This switcher features 2 HDMI and 1 USB-C inputs, and can transmit a 4K signal up to 131 feet (40 meters) or a 1080p signal up to 230 feet (70 meters) over a single cable. Inputs can be switched using the “Source/Auto” button, and the display power can be controlled via programmable RS232 using the “Display On/Off” button. The TPUH701T can also be powered using PoH from the connected HDBaseT receiver, eliminating the need for a power supply.

TPUH701T Product Page

Features

• Supports resolutions up to 4Kx2K@60/30Hz 4:4:4
• Extends 4K signal up to 130 ft (40m) or 1080P up to 230 ft (70m)
• 2 HDMI & 1 USB-C inputs, with manual or automatic switching
